ALMIRANTE PEREIRA DA SILVA frigates (1966-1968)

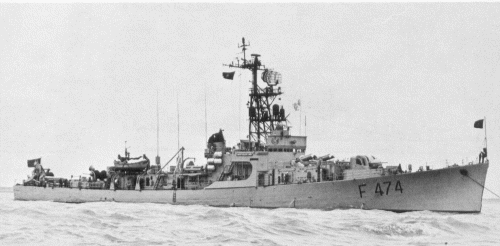

Almirante Magalhães Correia 1980
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Almirante Pereira da Silva | F472 | Lisnave, Lisboa | 14.6.1962 | 2.12.1963 | 20.12.1966 | stricken 1989 | |
| Almirante Gago Coutinho | F473 | Lisnave, Lisboa | 2.12.1963 | 13.8.1965 | 29.11.1967 | stricken 1989 | |
| Almirante Magalhães Correia | F474 | ENVC, Viana do Castello | 30.8.1963 | 26.4.1965 | 4.11.1968 | stricken 1989 |
Technical data
| Displacement standard, t | 1314 |
|---|---|
| Displacement full, t | 1877 |
| Length, m | 93.9 wl 96.0 oa |
| Breadth, m | 11.2 |
| Draught, m | 3.60 |
| No of shafts | 1 |
| Machinery | 1 set De Laval geared steam turbines, 2 Foster Wheeler boilers |
| Power, h. p. | 20000 |
| Max speed, kts | 27 |
| Fuel, t | oil 400 |
| Endurance, nm(kts) | 6000(12) |
| Armament | 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 TT, 2 x 4 - 375 Bofors ASWRL |
| Electronic equipment | F472: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-30, SQA-10A, DUBS-3A sonars F473: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-31, SQA-10A, DUBS-3A sonars F474: MLA-1B, type 978, SPG-34, Decca RM316P radars, SQS-32, SQA-10A, DUBS-3A sonars |
| Complement | 166 |
Standard scale images

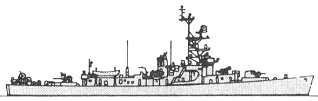

Almirante Gago Coutinho 1975
Graphics
Almirante Magalhães Correia 1980
Project history
USN Dealy design with different armament and sensors. Built under MDAP.
Modernizations
None.
Naval service
No significant events.
