AFONSO DE ALBUQUERQUE sloops (1935)

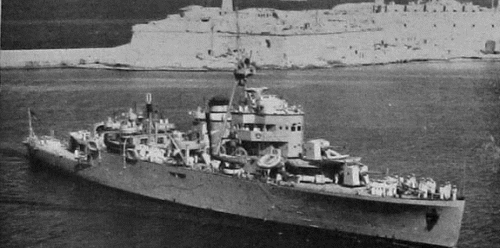

Afonso de Albuquerque 1935

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Afonso de Albuquerque 1956- F470   Hawthorn Leslie, Tyne, UK 5.1933 28.5.1934 3.1935 sunk 13.12.1961
Bartolomeu Dias 1956- F471   Hawthorn Leslie, Tyne, UK 1933 10.10.1934 5.1935 depot ship 2.1967


Technical data


Displacement standard, t1788
Displacement full, t2480
Length, m

99.6 pp 103.2 oa

Breadth, m

13.5

Draught, m

3.83

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Yarrow boilers

Power, h. p.

8000

Max speed, kts

21

Fuel, t

oil 580

Endurance, nm(kts)8000(10)
Armament4 x 1 - 120/50 Vickers-Armstrong Mk G, 2 x 1 - 76/50 Mk 2.3.5, 4 x 1 - 40/39 2pdr QF Mk II, 2 DCR, 40 mines, 1 seaplane (Fairey III)
Complement

184



Standard scale images


<i>Afonso de Albuquerque</i> 1935
Afonso de Albuquerque 1935
<i>Bartolomeu Dias </i>1965
Bartolomeu Dias 1965


Graphics


<i>Afonso de Albuquerque </i>1935
Afonso de Albuquerque 1935
<i>Bartolomeu Dias </i>1951
Bartolomeu Dias 1951


Project history

Colonial high-endurance sloops. The order was originally given out in 1931 to OTO (offered 2100t ships), but in connection with traditionally strong British effect and on financial motives in the same year the order was transferred to Hawthorn Leslie. The design was developed under effect of French Bougainville aviso. Officially Afonso de Albuquerque and Bartolomeu Dias were rated as 1st class avisos. Machinery included two 3-drum Yarrow boilers and Parsons geared turbines. Originally ships could carry a seaplane, but aviation equipment was removed soon after commission.

Modernizations

1935, both: - seaplane

1944, both: - 4 x 1 - 40/39; + 8 x 1 - 20/70 Oerlikon Mk II/IV, 4 DCT, presumably sonar

1950s, both: + radar

Naval service

Afonso de Albuquerque 18.12.1961 was hard damaged by gunfire of Indian frigate Betwa off Goa and ran aground. Bartolomeu Dias in February, 1967 was converted to depot ship and renamed São Cristovão.
