82F type torpedo boats (ZEZERE) (1915-1916/1921)
Sado 1933
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Zêzere (ex-85F) | Danubius, Porto Ré, Austria-Hungary | 1/1914 | 5.12.1914 | 12/1915 // 1921 | wrecked 29.12.1921 | ||
| Ave (ex-86F) | Danubius, Porto Ré // Danubius, Pola, Austria-Hungary | 1/1914 | 19.12.1914 | 5/1916 // 1921 | discarded 1940 | ||
| Cávado (ex-88F) | Danubius, Porto Ré, Austria-Hungary | 3/1914 | 24.4.1915 | 11/1915 // 1921 | wrecked 29.12.1921 | ||
| Sado (ex-89F) | Danubius, Porto Ré, Austria-Hungary | 5/1914 | 12.5.1915 | 3/1916 // 1921 | stricken 7.1940 | ||
| Liz (ex-90F) | Danubius, Porto Ré // Danubius, Novigrad, Austria-Hungary | 9/1914 | 28.5.1915 | 8/1916 // 1921 | discarded 1934 | ||
| Mondego (ex-91F) | Danubius, Porto Ré // Danubius, Novigrad, Austria-Hungary | 11/1914 | 21.6.1915 | 7/1916 // 1921 | discarded 1938 |
Technical data
| Displacement standard, t | 266 |
|---|---|
| Displacement full, t | 330 |
| Length, m | 58.5 pp 58.8 oa |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 AEG-Curtis steam turbines, 2 Yarrow boilers |
| Power, h. p. | 5000 |
| Max speed, kts | 28 |
| Fuel, t | coal 20 + oil 34 |
| Endurance, nm(kts) | 1200(16) |
| Armament | 1 x 1 - 75/27 G. L/30 K.16 BAG, 1 x 1 - 66/27 G. L/30 K.09, 2 x 2 - 450 TT |
| Complement | 38 |
Standard scale images

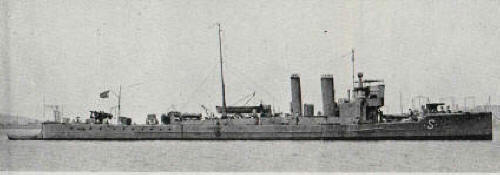

Sado 1937
Graphics
Sado 1933
Project history
Belonged to a numerous series of Austro-Hungarian seaworthy torpedo boats of 250-ton type built in days of the First World War. After war end 6 ships were transferred to Portugal. Rather successful ships for their time.
Modernizations
None.
Naval service
Zêzere and Cávado were wrecked at Cape Bon 29.12.1921 en route to Portugal. Ave and Sado were in the worn out condition in 1930s and were stricken in 1940.
