JÚPITER patrol boats (1965)
Júpiter
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P1132 Júpiter P1133 Vénus P1134 Marte P1135 Mercúrio P1136 Saturno P1137 Urano |
EN do Mondego: P1132-1137 | 3-8/1965: P1132-1137 |
None |
Mozambique, 1975: P1132, 1133 Angola, 1975: P1134-1137 |
none |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 44 |
| Length, m | 21.0 |
| Breadth, m | 5.03 |
| Draught, m | 1.31 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 1270 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

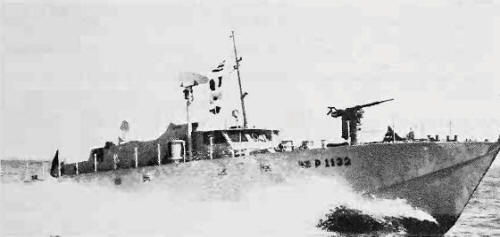

Júpiter
Project history
Small patrol boats for colonial service.
Modernizations
None.
Naval service
No significant events.
