DOM ALEIXO patrol boats (1967)
Dom Jeremias 1973
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P1148 Dom Aleixo P1149 Dom Jeremias |
Estaleiros Navais de São Jacinto, Aveiro: P1148, 1149 | 12/1967: P1148, 1149 1989: P1149 (2nd time) |
None |
None |
1977: P1149 (1st time) 1998: P1148, P1149 (2nd time) |
Technical data
| Displacement standard, t | 63 |
|---|---|
| Displacement full, t | 68 |
| Length, m | 25.0 |
| Breadth, m | 5.20 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 1270 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca 303 radar |
| Complement | 10 |
Graphics

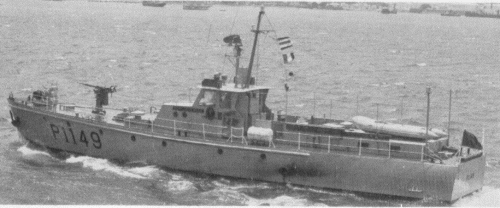

Dom Jeremias 1973
Project history
Patrol boats for domestic service.
Modernizations
None.
Naval service
Dom Jeremias served as survey craft in 1977-1989.
