BELLATRIX patrol boats (1961-1970)

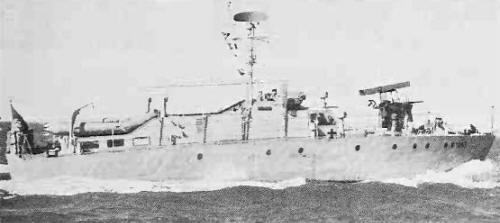

Arcturus 1972
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P363 Bellatrix P364 Canopus P365 Deneb P366 Espiga P367 Fomalhaut P368 Pollux P377 Altair P378 Rigel P1151 Arcturus P1152 Aldebaran P1153 Procion P1154 Sirius P1155 Vega |
Bayerische Schiffbaugesellschaft, Erlanbach, West Germany: P363-368, 377, 378 Arsenal do Alfeite: P1151-1155 |
1961: P363-368 1962: P377, 378 1968: P1151-1153 1970: P1154, 1155 |
None |
Angola, 1975: P366-368, 377, 378 Mozambique, 1975: P1154, 1155 |
1975: P363-365, 1151-1153 |
Technical data
| Displacement standard, t | 23 |
|---|---|
| Displacement full, t | 28 |
| Length, m | 19.1 wl 20.7 oa |
| Breadth, m | 4.63 |
| Draught, m | 1.22 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 450 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics
Arcturus 1972
Project history
Small patrol boats.
Modernizations
None.
Naval service
No significant events.
