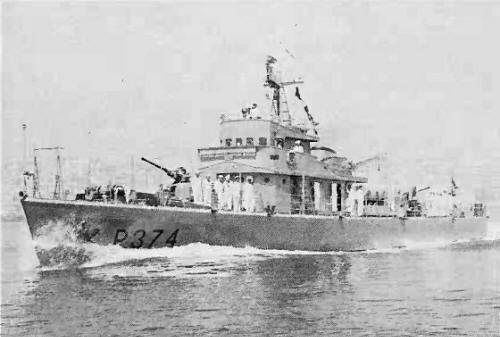

Dragão 1973

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Lira	P361		EN do Viana do Castelo			6.1964	to Angola 9.1975
Orion	P362		EN do Viana do Castelo			10.1964	to Angola 9.1975
Argos	P372		Arsenal do Alfeite			6.1963	to Angola 5.1975
Cassiopeia	P373		Arsenal do Alfeite			1.1964	stricken 9.1974
Dragão	P374		Arsenal do Alfeite			7.1963	to Angola 5.1975
Escorpião	P375		Arsenal do Alfeite			8.1963	to Angola 9.1975
Hidra	P376		Arsenal do Alfeite			4.1964	to Angola 5.1975
Pegaso	P379		Arsenal do Alfeite			10.1963	to Angola 10.1975
Centauro	P1130		EN do Viana do Castelo			4.1965	to Angola 9.1975
Sagitário	P1131		EN do Viana do Castelo			9.1965	stricken 9.1974

Technical data

Displacement standard, t	180
Displacement full, t	210
Length, m	40.0 pp 41.7 oa
Breadth, m	6.20
Draught, m	2.10
No of shafts	2
Machinery	2 Maybach diesels
Power, h. p.	1200
Max speed, kts	17
Fuel, t	diesel oil 16
Endurance, nm(kts)
Armament	2 x 1 - 40/60 Mk 3
Electronic equipment	radar
Complement	24

Standard scale images

Graphics

Project history

Colonial patrol boats.

Modernizations

None.

Naval service

No significant events.
