ALVOR patrol boats (1967-1968)
Alvor 1973
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P1156 Alvor P1157 Aljezur P1158 Albufeira |
Arsenal do Alfeite: P1156-1158 | 1967: P1156 1968: P1157, 1158 |
None |
None |
1975: P1156-1158 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 36 |
| Length, m | 21.1 |
| Breadth, m | 5.49 |
| Draught, m | 1.56 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 235 |
| Max speed, kts | 12.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

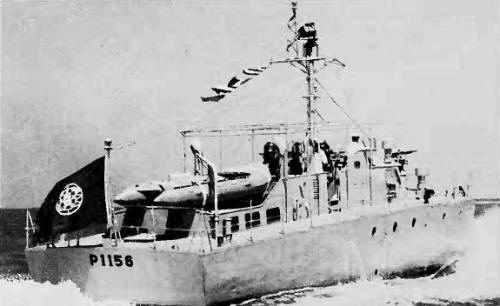

Alvor 1973
Project history
Small patrol boats for colonial service in Guinea.
Modernizations
None.
Naval service
No significant events.
