GENERAŁ HALLER gunboats (1921)

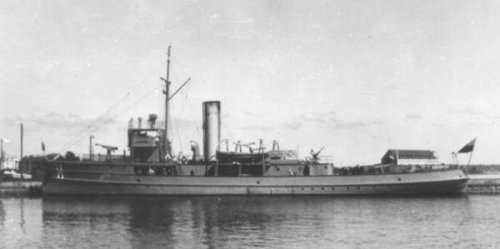

Generał Haller

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Generał Haller (ex-Turunmaa, ex-Водорез [Vodorez])     Crichton-Vulkan, Aabo, Russia/Finland 1916   5.1921 sunk 6.9.1939
Komendant Piłsudski (ex-Karjala, ex-Лунь [Lun])     Crichton-Vulkan, Aabo, Russia/Finland 1916 24.1.1917 1921 scuttled 30.9.1939


Technical data


Displacement normal, t

342

Displacement full, t

441

Length, m

50.1

Breadth, m

6.80

Draught, m

2.30

No of shafts

2

Machinery

2 VTE, 2 boilers

Power, h. p.

1150

Max speed, kts

15

Fuel, t

coal 70

Endurance, nm(kts)700(15)
Armament

6 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.9/92

Complement

49



Standard scale images


<i>Generał Haller</i> 1939
Generał Haller 1939


Graphics


<i>Generał Haller</i>
Generał Haller


Project history

Former patrols of Vodorez class, built for Imperial Russian Navy (5 ships in the class), after revolution in 1917 incomplete hulls were captured by Finnish troops and completed for Finnish Navy as Turunmaa (ex-Vodorez) and Karjala (ex-Lun). In 1921 they were bought by Poland.

Modernizations

1925, both: - 4 x 1 - 47/40; + 2 x 1 - 75/35 M1915-18

1938, both: - 2 x 1 - 47/40; + 1 x 2 - 13.2/76, 2 x 1 - 7.9/92

Naval service

Generał Haller was sunk 6.9.1939 at Hel naval base by German aircraft.

Komendant Piłsudski was scuttled by crew 30.9.1939 at Hel naval base. She was salvaged by Germans and commissioned by them as Heisternest. In 1943 she was renamed M3109 and 16.9.1944 sunk at Nantes by Allied aircraft.
