ŻUBR minesweepers (projects 254K, 254M, 1956 - 1959)





Delfin 1969

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Żubr T61, 1.1960- 601 V4/1 Stocnia Północną, Gdansk 6/1955 23.6.1956 22.12.1956 stricken 3.1987 Project 254K
Tur T62, 1.1960- 602 V4/2 Stocnia Północną, Gdansk 6/1955 22.12.1956 7.8.1957 radar picket 3.1978, stricken 10.1991 Project 254K
Łoś T63, 1.1960- 603 V4/3 Stocnia Północną, Gdansk 10/1955 29.6.1957 17.11.1957 stricken 10.1989 Project 254K
Dzik T64, 1.1960- 604 V4/101 Stocnia Północną, Gdansk 10.6.1957 16.10.1957 28.6.1958 stricken 5.1990 Project 254M
Bizon T65, 1.1960- 605 V4/102 Stocnia Północną, Gdansk 2.9.1957 31.12.1957 21.9.1958 stricken 5.1990 Project 254M
Bóbr T66, 1.1960- 606 V4/103 Stocnia Północną, Gdansk 16.12.1957 22.3.1958 8.11.1958 stricken 5.1990 Project 254M
Rosomak T67, 1.1960- 607 V4/104 Stocnia Północną, Gdansk 10.1.1958 17.5.1958 4.1.1959 stricken 11.1988 Project 254M
Delfin T68, 1.1960- 608 V4/105 Stocnia Północną, Gdansk 28.3.1958 28.6.1958 8.3.1959 stricken 3.1987 Project 254M
Foka T69, 1.1960- 609 V4/106 Stocnia Północną, Gdansk 24.5.1958 22.8.1958 26.4.1959 stricken 11.1988 Project 254M
Mors T70, 1.1960- 610 V4/107 Stocnia Północną, Gdansk 1.10.1958 28.2.1959 3.7.1959 stricken 10.1989 Project 254M
Ryś T71, 1.1960- 611 V4/108 Stocnia Północną, Gdansk 12.1.1959 29.4.1959 10.9.1959 stricken 10.1989 Project 254M
Żbik T72, 1.1960- 612 V4/109 Stocnia Północną, Gdansk 1.4.1959 10.6.1959 6.11.1959 stricken 10.1989 Project 254M


Technical data


Displacement standard, t

pr. 254K: 510

pr. 254M: 540

Displacement normal, t

pr. 254K: 577

pr. 254M: 600

Length, m

pr. 254K: 58.0

pr. 254M: 59.1

Breadth, m

8.50

Draught, m

pr. 254K: 2.28

pr. 254M: 2.33

No of shafts

2

Machinery

2 9D or 9DM diesels

Power, h. p.

2200

Max speed, kts

pr. 254K: 14

pr. 254M: 14.5

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 254K: 3200(10)

pr. 254M: 3500(10)

Armament

pr. 254K: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear

pr. 254M: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/112 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MKT-1 mechanical, TEM-52M magnetic, BGAT acoustic minesweeping gear

Electronic equipment

pr. 254K: Lin', Rym-K radars, Tamir-10 sonar

pr. 254M: Lin', Rym-K radars, Tamir-11 sonar

Complement

pr. 254K: 68

pr. 254M: 77



Standard scale images


<i>Dzik </i>1958
Dzik 1958
<i>Żubr </i>1956
Żubr 1956


Graphics

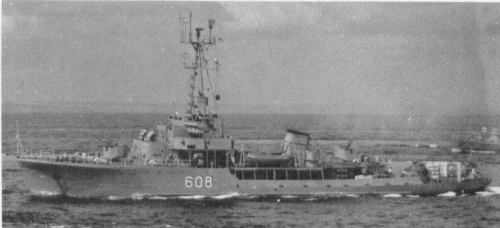

<i>Delfin </i>1969
Delfin 1969

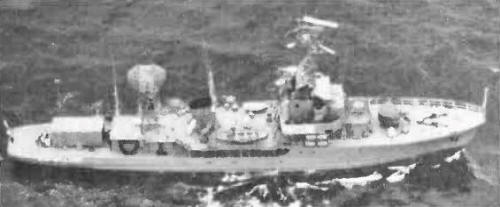

<i>Tur </i>1985 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Tur 1985 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Soviet Projects 254K and 254M seagoing minesweepers, built in Gdansk by Soviet design.

Modernizations

1970s, all: - Lin' radar; + SRN-231 radar

1977-3/1978, Tur: as radar pickets under Project 258: 500/594t, 58.0x8.50x2.20m, 14.5kts, 1800(14)nm, compl. 87; 2 x 2 - 37/7- V-11M, 1 x 2 - 25/112 2M-3M, 2 DCT, MR-200 Kaktus or MR-500 Kliver, Lin' radars

Naval service

No significant events.
