TR-25 minesweepers (project B410-IVS, 1983)





TR-25 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
TR-25 625   Stocnia im. E. Kwiatkowskiego, Ustka     12.10.1983 stricken 2005
TR-26 626   Stocnia im. E. Kwiatkowskiego, Ustka     12.10.1983 stricken 2005


Technical data


Displacement standard, t

245

Displacement full, t

269

Length, m

25.7

Breadth, m

7.22

Draught, m

3.25

No of shafts

1

Machinery

1 Sulzer-Puck 6AL20/24 diesel

Power, h. p.

570

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)

3200(10)

Armament

MT-3U mechanical, SEMT-1 magnetic, BAT-2 acoustic minesweeping gear, towed line-charges

Electronic equipment

SRN-311 radar

Complement

8 - 10



Graphics

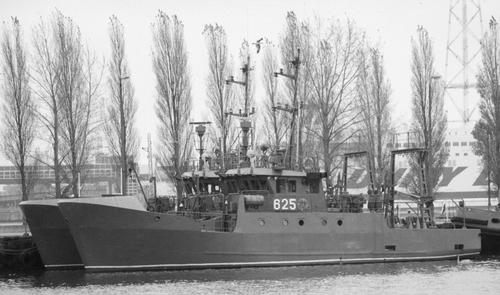

<i>TR-25 </i>2000
TR-25 2000


Project history

Conversions of Project B-410, project B-410S-IVS, 79dwt trawlers to tow line-charges - an effective but dangerous mine countermeasures technique. Were also used for naval reservist training.

Modernizations

None.

Naval service

No significant events.
