MAMRY minesweepers (project 207M, 1992 - 1994)

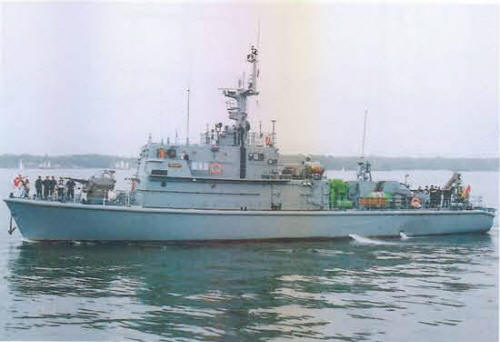

Śmiardwy 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mamry 643   Stocnia Marynarki Wojennej, Gdynia   20.9.1991 25.9.1992 in service (2019)
Wigry 644   Stocnia Marynarki Wojennej, Gdynia   28.11.1992 14.5.1993 in service (2019)
Śniardwy 645   Stocnia Marynarki Wojennej, Gdynia   20.6.1993 28.1.1994 in service (2019)
Wdzydze 646   Stocnia Marynarki Wojennej, Gdynia   24.6.1994 2.12.1994 in service (2019)
  647       --- --- cancelled 1994


Technical data


Displacement standard, t

210

Displacement full, t

225

Length, m

36.5 pp 38.5 oa

Breadth, m

7.35

Draught, m

1.78 hull

No of shafts

2

Machinery

2 M-401A diesels

Power, h. p.

1875

Max speed, kts

14.5

Fuel, t

diesel oil

Endurance, nm(kts)

1100(9)

Armament

1 x (2 Strela-2M SAM + 2 - 23/87) ZU-23-2MR Wrobel-2MR (6 Strela-2M), 2 DCR (12), 6 - 24 mines, MMTK-1M mechanical, TEM-PE-1M2 magnetic, MTA-2 acoustic minesweeping gear, decompression chamber

Electronic equipment

SRN-401XTA radar, SHL-100 Flaming-A, SHL-200 sonars

Complement

49



Standard scale images


<i>Mamry </i>2000
Mamry 2000


Graphics


<i>Śmiardwy </i>2007
Śmiardwy 2007


Project history

Modified Gopło class (project 207M) with longer pilothouse, decompression chamber and modified minesweeping equipment. Low-magnetic field minesweepers with GRP hull.

Modernizations

None.

Naval service

No significant events.
