GRYF minelayer (1938)





Gryf 1938

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Gryf     C A Augustin-Normand, Le Havre, France 11.1934 29.11.1936 2.1938 sunk 3.9.1939


Technical data


Displacement standard, t

2227

Displacement full, t

~2700

Length, m

103.2

Breadth, m

13.1

Draught, m

3.60

No of shafts

2

Machinery

2 Sulzer diesels

Power, h. p.

6000

Max speed, kts

20

Fuel, t

diesel oil 310

Endurance, nm(kts)9500(14)
Armament

2 x 2 - 120/50 Bofors M34/36, 2 x 1 - 120/50 Bofors M34/36, 2 x 2 - 40/56 Bofors, 4 x 2 - 13.2/76, 600 mines

Complement

162



Standard scale images

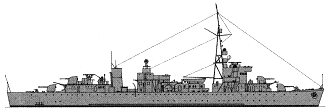

<i>Gryf</i> 1939
Gryf 1939


Graphics

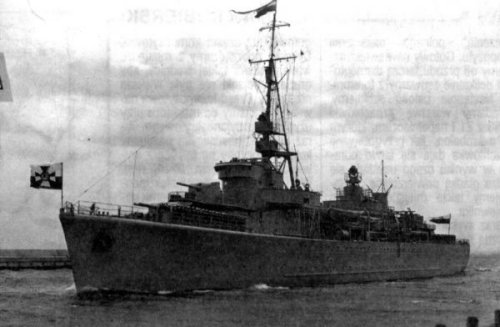

<i>Gryf</i> 1938
Gryf 1938


Project history

This original ship was ordered by Polish government in France in 1934. According to the technical project, besides the basic purpose, minelaying, Gryf should fulfil functions of training ship and presidential yacht. The desire to place on her strong artillery at simultaneous limitation of displacement (for financial reasons) has led to that it was possible to assign not enough place for machinery that has predetermined its narrowness.

Modernizations

None.

Naval service

Gryf was damaged by German aircraft 1.9.1939 and was put on repair to floating dock. She was sunk by German aircraft 3.9.1939 (together with a floating dock) at Hel naval base.
