Warszawa 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Warszawa (ex-Spravedlivy)	275	709	190 Zhdanov Yd, Leningrad, USSR	25.12.1954	12.4.1956	20.12.1956 // 25.6.1970	stricken 1.1986

Technical data

Displacement standard, t	3060
Displacement full, t	3620
Length, m	126.1
Breadth, m	12.8
Draught, m	4.50
No of shafts	2
Machinery	2 TV-8 geared steam turbines sets, 4 KV-76 boilers
Power, h. p.	72000
Max speed, kts	34.5
Fuel, t	oil
Endurance, nm(kts)	2150(17)
Armament	1 x 2 M-1 Volna SAM (16 V-600(4K90)), 1 x 2 - 130/58 SM-2-1, 1 x 4 - 45/89 SM-20-ZIF, 2 x 1 - 45/69 21KM, 1 x 5 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL
Electronic equipment	MR-300 Angara, Yakor'-M1, 4R-90 Yatagan, Fut-B, Zaria, 2x Don radars, Gerkules-2M sonar, Machta-P4 ECM suite
Complement	268

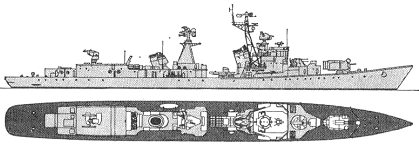

Standard scale images

Graphics

Project history

Former Soviet project 56AE destroyer.

Modernizations

None.

Naval service

No significant events.
