GARLAND destroyer (1936 / 1940)

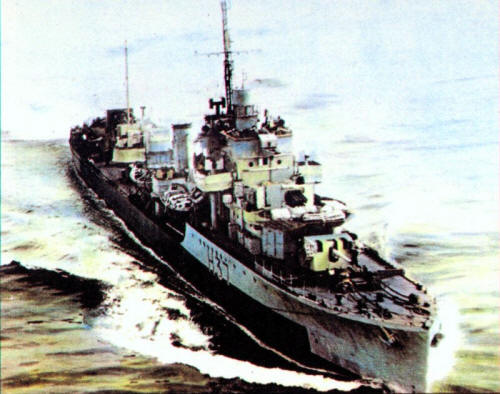

Garland 1944 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Garland (ex-Garland) H37 651 Fairfield, Govan, UK 8/1934 24.10.1935 3/1936 // 5.1940 to UK 9.1946 (Garland)


Technical data


Displacement standard, t

1340

Displacement full, t

1900

Length, m

95.1 pp 98.5 oa

Breadth, m

10.1

Draught, m

3.80

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers

Power, h. p.

34000

Max speed, kts

36

Fuel, t

443 - 461 oil

Endurance, nm(kts)5530(15)
Armament

4 x 1 - 120/45 QF MkIX, 1 x 1 - 76/45 20cwt QF Mk I/II/III/IV, 2 x 4 - 12.7/62, 1 x 4 - 533 TT, 2 DCT, 1 DCR (20 DC), mechanical minesweeping gear

Electronic equipment

type 121 sonar

Complement

145



Standard scale images


<i>Garland</i> 1942
Garland 1942
<i>Garland</i> 1942
Garland 1942


Graphics


<i>Garland</i> 1944 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Garland 1944 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

British destroyer Garland of G class, transferred to Polish Navy 3.5.1940.

Modernizations

1941: - 1 x 1 - 120/45; + 2 x 1 - 20/70 Oerlikon Mk II/IV, 2 DCT (70 DC totally)

1941 - 1942: presumably + type 271, type 286/P radars

1943: - 1 x 1 - 120/45, 1 x 1 - 76/45, 2 x 4 - 12.7/62, type 124 sonar; + 2 x 1 - 57/47 6pdr 10cwt QF Mk I, 2 x 1 - 20/70 Oerlikon Mk II/IV, 1 x 24 - 178 Hedgehog ASWRL (70 - 125 DC), type 144 sonar

1943 - 1944: presumably - type 286/M/P radar; + type 291 radar

1944: - 2 x 1 - 20/70; + 2 x 2 - 20/70 Oerlikon Mk II/IV

Naval service

Garland was returned to Britain in 1947, but the same year sold to Netherlands and renamed Marnix.

Many thanks to Wolfgang Stöhr for additional information on this page.
