DATU KALANTIAW frigates (1943-1944/1967-1980)

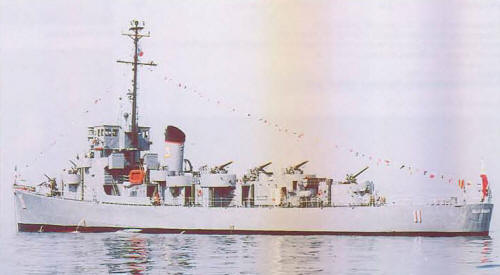

Datu Kalantiaw 1970s

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Datu Kalantiaw (ex-Booth) PS76   Federal, Newark, USA 1.1943 21.6.1943 9/1943 // 15.12.1967 wrecked 21.9.1981
Datu Sikatuna (ex-あさひ [Asahi], ex-Amick) PS77, 1985- PF5   Federal, Newark, USA 1.1943 27.5.1943 7/1943 // 27.2.1980 stricken 1989
Rajah Humabon (ex-はつひ [Hatsuhi], ex-Atherton) PS78, 1985- PF6, 1996- PF11   Federal, Newark, USA 1.1943 27.5.1943 8/1943 // 23.6.1980 stricken 3.2018


Technical data


Displacement standard, t

1240

Displacement full, t

1620

Length, m

91.4 wl 93.3 oa

Breadth, m

11.2

Draught, m

3.56 full load

No of shafts

2

Machinery

4 General Motors diesel-generators, 2 electric motors

Power, h. p.

6000

Max speed, kts

20

Fuel, t

diesel oil 320

Endurance, nm(kts)11500 (11)
Armament

PS76: 3 x 1 - 76/50 Mk 26, 3 x 2 - 40/60 Mk 1, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 TT, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCR

PS77: 3 x 1 - 76/50 Mk 26, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 6 DCT, 2 DCR (120)

PS78: 3 x 1 - 76/50 Mk 26, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 6 DCT, 2 DCR (120)

Electronic equipmentSPS-5, SPS-6C, Mk 26 radars, SQS-17B sonar
Complement

165



Standard scale images

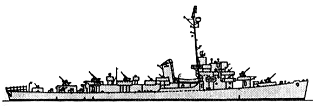

<i>Datu Kalantiaw </i>1975
Datu Kalantiaw 1975


Graphics


<i>Rajah Humabon </i>2001
Rajah Humabon 2001

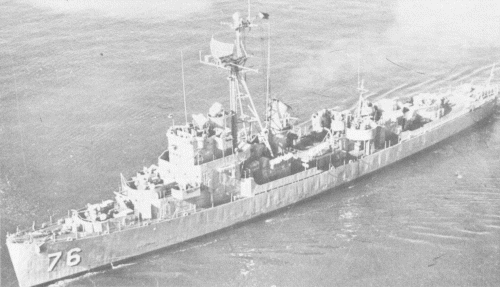

<i>Datu Kalantiaw </i>1970s
Datu Kalantiaw 1970s


Project history

USN destroyer escorts. Datu Kalantiaw transferred 15 December 1976, and sold on 31 August 1978; Datu Siratuna and Rajah Humabon served in Japanese Navy in 1955-75 and were transferred to Philippines in 1976 and purchased at scrap value, towed to S Korea in October 1978 for overhaul and modernization. Two more ships without new names were taken over from Korean deletion list and were probably cannibalized for spares for active units.

Modernizations

early 1990s, Rajah Humabon: - 1 x 24 - 178 Hedgehog ASWRL, 6 DCT, 2 DCR, Mk 26 radar, SQS-17B sonar; + 4 x 1 - 12.7/90

2000s, Rajah Humabon: - SPS-5, SPS-6C radars; + SPS-64 radar

Naval service

Datu Kalantiaw ran aground on 20 September 1981 in Typhoon 'Clara' on the northern shore of Calayan Island. Rajah Humabon was stricken in 1993 but restored to service in 1995 under new hull number.
