NAVYPEDIA


PSB435 1993

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
PSB411, 1996- DB411 PSB412 PSB413, 1996- DB413 PSB414-416 PSB417, 1996- DB417 PSB418 PSB419, 1996- DB419 PSB420, 421 PSB422, 1996- DB422 PSB423-425 PSB426, 1996- DB426 PSB427, 428 PSB429, 1996- DB429 PSB430 PSB431, 1996- DB431 PSB432, 1996- DB432 PSB433, 434 PSB435, 1996- DB435	Marcelo Fiberglass Corp., Manila: PSB411-435	1975-1976: PSB411, 413, 417, 419, 422, 426, 429, 431, 432, 435	1975 (fire, incomplete on the stocks): PSB412, 414-416, 418, 420, 421, 423-425, 427, 428, 430, 433, 434	none	in service (2019): DB411, 413, 417, 419, 422, 426, 429, 431, 432, 435

Technical data

Displacement standard, t	15
Displacement full, t	22
Length, m	14.1
Breadth, m	4.32
Draught, m	1.04 hull 1.48 propellers
No of shafts	2
Machinery	2 MTU 8V331 TC80 diesels
Power, h. p.	1800
Max speed, kts	20
Fuel, t	diesel oil
Endurance, nm(kts)	200(36)
Armament	1 x 2 - 12.7/90, 1 x 1 - 12.7/90
Electronic equipment	LN-66 radar
Complement	6

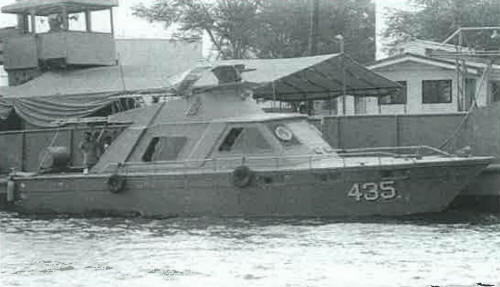

Graphics

Project history

12 of 25 hulls completed during 1975 were destroyed by fire, and the program was terminated.

Modernizations

None.

Naval service

: All were transferred to Coast Guard in 1996.
