AMÉRICA river gunboat (1904)





América 1935

Ships


Name No Yard No Builder Laid down Launched Comp Fate
América CF15   Tranmere Bay, Birkenhead, UK   1904 1904 preserved 1984


Technical data


Displacement normal, t

240

Displacement full, t
Length, m

40.5

Breadth, m

5.94

Draught, m

1.37

No of shafts2
Machinery2 VTE, 2 boilers
Power, h. p.350
Max speed, kts

14

Fuel, t

coal 42

Endurance, nm(kts)
Armament

4 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.7/94

Complement26


Graphics

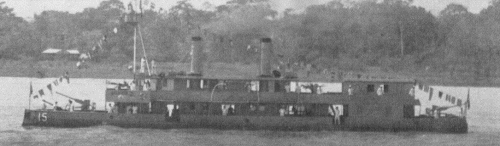

<i>América </i>1935
América 1935

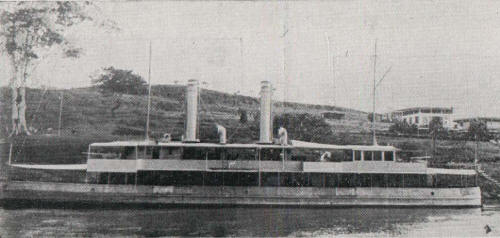

<i>América </i>after WWII
América after WWII


Project history

Gunboat was many times rearmed and served 80 years. Steel hull.

Modernizations

1930s: boilers were converted to oil burning; - 1 x 1 - 47/40; + 2 x 1 - 65/50 Schneider, 2 x 1 - 20/60 Madsen?

1960s: - 2 x 1 - 65/50, 3 x 1 - 47/40, 2 x 1 - 20/60; + 2 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 4

Naval service

In 1984 América was stricken and preserved as museum in Iquitos.
