PISCO landing platform docks (2018-)
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| Pisco | 156 | SIMA, Callao | 12.7.2013 | 25.4.2017 | 6.6.2018 | in service (2019) |
| Paita | 157 | SIMA, Callao | 21.12.2017 | 2021 | 2022 | building (2019) |
Technical data
| Displacement standard, t | 7300 |
|---|---|
| Displacement full, t | 11000 |
| Length, m | 109.2 pp 122.0 oa |
| Breadth, m | 22.0 |
| Draught, m | 4.90 mean hull 6.70 max |
| No of shafts | 2 |
| Machinery | 2 MAN-Burmeister & Wain 9L28/32A diesels |
| Power, h. p. | 6000 |
| Max speed, kts | 16.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 10000(12) |
| Armament | 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 helicopters (AS332L Super Puma) |
| Military load | 2 LCM, 35 vehicles, 457 troops |
| Electronic equipment | 2x nav., Dorna radars |
| Complement | 100 |

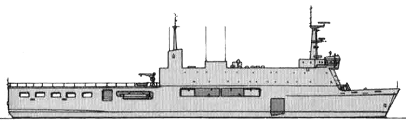

Standard scale images
Pisco
Project history
Similar to Indonesian Makassar class, built with assistance of Daewoo. Replacement for Terrebonne Parish class LSTs. Main missions are the force projection and disaster relief support. Ships were built under assistance of Daewoo. Ships have 23m-long well deck.
Modernizations
None.
Naval service
No significant events.
