VILLAR destroyers (1943/1960-1961)

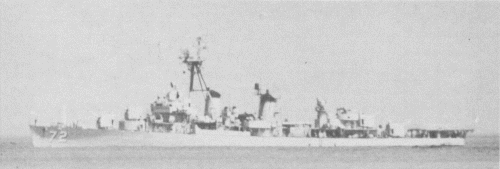

Guise 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Villar (ex-Isherwood) | 71 | Bethlehem, Staten I, Port Richmond, USA | 5.1942 | 24.10.1942 | 4/1943 // 8.10.1961 | discarded 1980 | |
| Almirante Guise (ex-Benham) | 72 | Bethlehem, Staten I, Port Richmond, USA | 4.1943 | 30.8.1943 | 12/1943 // 15.12.1960 | discarded 1981 |
Technical data
| Displacement standard, t | 2276 |
|---|---|
| Displacement full, t | 3005 |
| Length, m | 112.5 wl 114.7 oa |
| Breadth, m | 12.1 |
| Draught, m | 4.19 full load |
| No of shafts | 2 |
| Machinery | 2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
| Power, h. p. | 60000 |
| Max speed, kts | 38 |
| Fuel, t | oil 492 |
| Endurance, nm(kts) | 6500 (15) |
| Armament | 4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 5 - 533 TT, 2 - 533 TC, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR |
| Electronic equipment | SPS-6, SPS-10, Mk 25, Mk 34 radars, SQS-4 sonar |
| Complement | 273 |
Standard scale images
Guise 1963
Guise 1980
Graphics

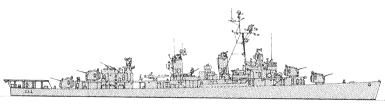

Guise 1976
Project history
Former USN Fletcher class destroyers.
Modernizations
1975-1976, both: + helicopter deck
Naval service
No significant events.
