Ferré 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

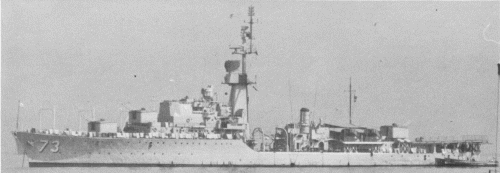

Palacios (ex-Diana)	73		Yarrow, Scotstoun, UK	4/1947	8.5.1952	3/1954 // 1.12.1969	discarded 1993

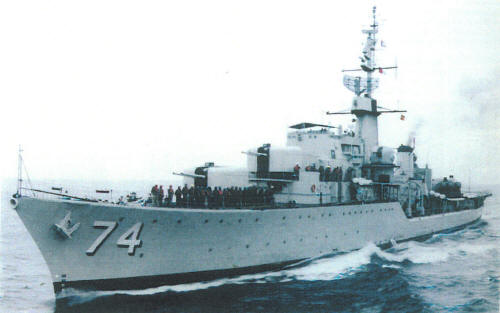

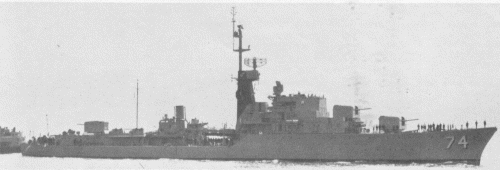

Ferré (ex-Decoy)	74		Yarrow, Scotstoun, UK	9/1946	19.3.1949	4/1953 // 1.12.1969	discarded 7.2007

Technical data

Displacement standard, t	2830
Displacement full, t	3580
Length, m	111.6 pp 118.9 oa
Breadth, m	13.1
Draught, m	4.14 deep load
No of shafts	2
Machinery	2 sets Yarrow geared steam turbines, 2 Babcock & Wilcox boilers
Power, h. p.	54000
Max speed, kts	34.75
Fuel, t	oil 590
Endurance, nm(kts)	4400(20)
Armament	3 x 2 - 120/45 Mk 6, 1 x 2 - 40/60 Mk 5, 2 x 1 - 40/60 Mk 7, 1 x 3 - 305 Squid ASWRL
Electronic equipment	type 262, type 277, type 291, type 293, type 903 radars, type 170, type 174 or type 177 sonars
Complement	297 - 330

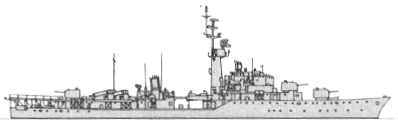

Standard scale images

Graphics

Project history

Former British Daring class destroyers.

Modernizations

(1970-2/1973), Palacios; (1970-4/1973), Ferré: foremast was enclosed; - type 903 radar; + 4 x 2 Exoset MM38 SSM (8 MM38), AWS-1, Triton radars

1975-1976, both: - 1 x 3 305 Squid ASWRL, type 170, type 174 or type 177 sonars; + helicopter deck

1977-1978, both: - 1 x 2 - 40/60, 2 x 1 - 40/60; + 2 x 2 - 40/70 Breda-Bofors Compact Twin 40; Decca 250HC, 4x RTN-10X radars, F0417-501 ECM suite

1990s, both: + 2 x 4 MGP-86 SAM (16 9M39 Igla) (provision for)

Naval service

No significant events.
