GARCÍA Y GARCÍA destroyer (1954/1978)

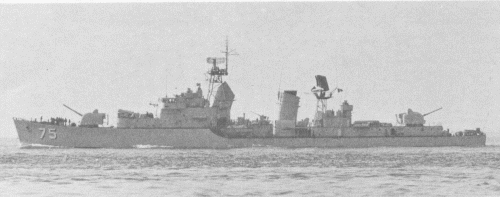

García y García 1978 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
García y García (ex-Holland) 75 266 Rotterdamse Droogdok Mij, Rotterdam, Netherlands 21.4.1950 11.4.1953 31.12.1954 // 2.1.1978 deleted 1986


Technical data


Displacement standard, t

2215

Displacement full, t

2765

Length, m

109.9 pp 113.1 oa

Breadth, m

11.4

Draught, m

5.10

No of shafts

2

Machinery

2 sets Werkspoor-Parsons geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

45000

Max speed, kts

32

Fuel, t

oil

Endurance, nm(kts)4000(18)
Armament

2 x 2 - 120/50 Bofors No.10, 1 x 1 - 40/70 Bofors SP48, 2 x 4 - 375 Bofors ASWRL, 2 DCR

Electronic equipment

DA-02, LW-03, ZW-01, M45 radars, type 170B, type 162 sonars

Complement

247



Standard scale images


<i>García y García </i>1980
García y García 1980


Graphics


<i>García y García </i>1978 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
García y García 1978 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former Dutch Holland class destroyer.

Modernizations

None.

Naval service

No significant events.
