ALMIRANTE GRAU light cruisers (1953/1973-1976)

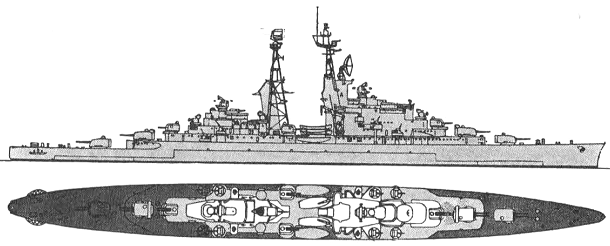

Almirante Grau 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Almirante Grau (ex-De Ruyter), 1986- Proyecto 01, 1987- Almirante Grau 81 670 Wilton-Fijenoord, Schiedam, Netherlands 5.9.1939 24.12.1944 18.11.1953 // 7.3.1973 stricken 9.2017
Aguirre (ex-De Zeven Provinciën), 1986- Almirante Grau, 1987- Aguirre 84 219 Rotterdamsche Droogdok Mij, Rotterdam, Netherlands 19.5.1939 22.8.1950 17.12.1953 // 8.1976 stricken 3.1999


Technical data


Displacement standard, t

81: 9529

84: 9850
Displacement full, t

81: 12165

84: 12250
Length, m

81: 182.4 pp 187.3 oa

84: 182.4 pp 185.7 oa
Breadth, m

17.3
Draught, m

6.70
No of shafts

2
Machinery

2 sets De Schelde-Parsons geared steam turbines, 4 Werkspoor-Yarrow boilers
Power, h. p.

85000
Max speed, kts

32
Fuel, t

oil 1750
Endurance, nm(kts)

7000(12)
Armour, mm

belt: 75 - 50, deck: 30 - 20, turrets: 100 - 50
Armament

81: 4 x 2 - 152/53 Bofors M42, 4 x 2 - 57/60 Bofors M50, 8 x 1 - 40/70 Bofors M58 (350)

84: 2 x 2 - 152/53 Bofors M42, 3 x 2 - 57/60 Bofors M50, 4 x 1 - 40/70 Bofors M58 (350), 3 helicopters (ASH-3D Sea King)
Electronic equipment

81: LW-01, DA-02, SGR-104, ZW-01, 2x M20, 2x M45 radars

84: LW-01, SPA-72, ZW-01, M25, 2x M45 radars, 2x Corvus decoy RL
Complement

81: 953

84: 856


Standard scale images

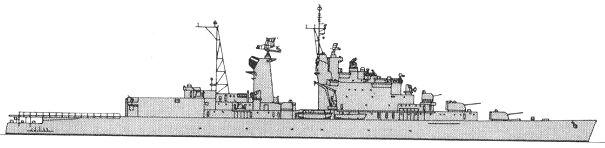

<i>Aguirre </i>1980
Aguirre 1980
<i>Almirante Grau </i>2010
Almirante Grau 2010

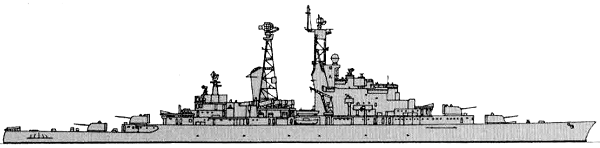

<i>Almirante Grau </i>1980
Almirante Grau 1980


Graphics

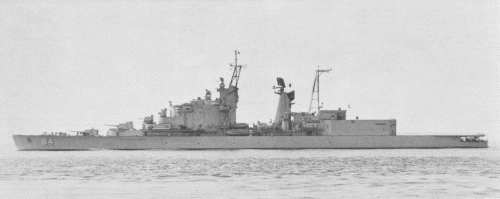

<i>Aguirre </i>1978
Aguirre 1978

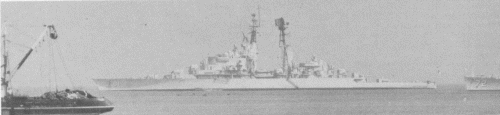

<i>Almirante Grau </i> 1976
Almirante Grau 1976

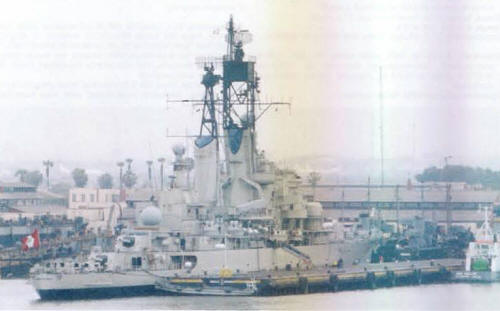

<i>Almirante Grau </i>2004 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Almirante Grau 2004 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former Dutch De Ruyter class cruisers. After sale to Peru Aguirre had her Terrier missile system removed and she was converted into a helicopter cruiser with 35x17m flight deck and large 20.5x16.5m hangar capable of operating up to three Agusta ASH-3D Sea King helicopters armed with AM39 Exocet missiles. Conversion was completed on 31 October 1977. Almirante Grau was commissioned 23.5.1973.

Protection

75mm armoured belt protected a hull between end barbettes and was closed by 50mm bulkheads. Ship ends were protected by narrower 50mm belt. Flat 30 - 20mm deck was connected with upper edge of the belt. Turrets had 100mm faces and 50mm protection from other directions.

Modernizations

1986, Aguirre: - LW-01, SPA-72, ZW-01 radars; + 2 DCR, 2x Decca 1226, LW-02, SGR-103, DA-02, ZW-03 radars, CWE-10N sonar

1989, Almirante Grau: - 4 x 2 - 57/60, 8 x 1 - 40/70, DA-02, ZW-01, 2x M20, 2x M45 radars; + 2 DCR, Decca 1226, LW-02, SGR-105, WM-25 radars, CWE-610 sonar, DR-4000, Ramses ECM suite, Sagaie decoy RL

1993, Almirante Grau: - LW-02, LW-01, SGR-104, SGR-105 radars, CWE-610 sonar; + 8 x 1 Otomat Mk 2 SSM (8 Otomat Mk 2), 8 x 1 - 40/70 Bofors 350, LW-08, DA-08, STIR 2.4, 2x LIROD 8 radars, 2x Dagaie decoy RL, SEWACO CCS

1998, Almirante Grau: - 4 x 1 - 40/70; + 2 x 2 - 40/70 Breda-Bofors Compact Twin 40

Naval service

No significant events.
