CS1 motor patrol launches (1942-1943/1944)

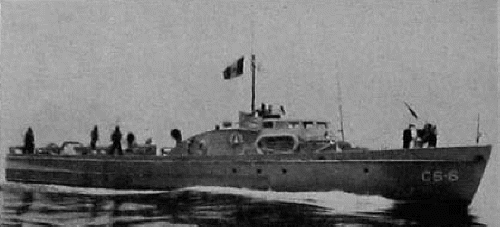

CS6 1951
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CS1 (ex-CG83422) CS2 (ex-CG83496) CS3 (ex-CG83495) CS4 (ex-CG83423) CS5 (ex-CG83315) CS6 (ex-CG83338) |
Wheeler, Brooklyn, USA: CS1 - 6 |
1942 // 1944: CS5, 6 1943 // 1944: CS1 - 4 |
none |
none |
1958 - 1961: CS1 - 6 |
Technical data
| Displacement standard, t | 45 trials |
|---|---|
| Displacement full, t |
|
| Length, m | 25.3 |
| Breadth, m | 4.88 |
| Draught, m | 1.37 |
| No of shafts | 2 |
| Machinery | 2 petrol engines |
| Power, h. p. | 1200 |
| Max speed, kts | 20.5 |
| Fuel, t | petrol 7 |
| Endurance, nm(kts) | 375(12) |
| Armament | 1 x 1 - 20/70 Mk 4, 4 DCR (14) |
| Complement | 10 |
Standard scale images
CS1 1945
Graphics
CS6 1951
Project history
USCG 83ft-type motor launches, transferred to Peru, four in the March, 1944 and two in summer 1944.
Modernizations
None.
Naval service
No significant events.
