MARINA PELAYO PRATT GILL patrol launches (2012-2013)
Marina Pelayo Pratt Gill 2012
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LP201 Marina Pelayo Pratt Gill LP202, 203 |
Armacraft Australia, Brisbane, Australia: LP201-203 |
2012: LP201, 202 2013: LP203 |
none |
none |
in service (2019): LP201-203 |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | 12 |
| Length, m | 11.5 wl 15.0 oa |
| Breadth, m | 3.85 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 diesels |
| Power, h. p. | 900 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 2 - 12.7/90 |
| Electronic equipment | nav. radar |
| Complement | 2 + 18 passengers |
Graphics

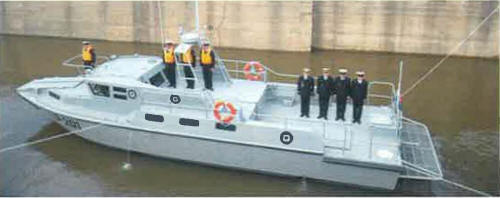

Marina Pelayo Pratt Gill 2012
Project history
Aluminium construction. Swedish Armacraft CROQ 15 design.
Modernizations
None.
Naval service
No significant events.
