PAPUA NEW GUINEA
COASTAL FORCES
TARANGAU patrol boats (1987-1989)
Dreger 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Tarangau, 2008- Rabaul | 01 | Tarnsfield ASI, South Coogie, Australia | 1987 | 16.5.1987 | in service (2020) | ||
| Dreger | 02 | Tarnsfield ASI, South Coogie, Australia | 12.1.1987 | 7.9.198 | 31.10.1987 | in service (2020) | |
| Seeadler | 03 | Tarnsfield ASI, South Coogie, Australia | 21.3.1988 | 4.9.1988 | 29.10.1988 | in service (2020) | |
| Basilisk, 2008- Moresby | 04 | Tarnsfield ASI, South Coogie, Australia | 19.10.1988 | 7.5.1989 | 1.7.1989 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 165 |
| Length, m | 28.6 pp 31.5 oa |
| Breadth, m | 8.10 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516TA diesels |
| Power, h. p. | 2820 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 17 |
Graphics

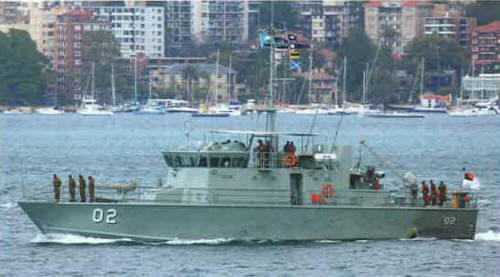

Dreger 2013
Project history
Australian ASI315 'Pacific Forum' design - boats, built for Pacific island countries by Australian government as an aid. Carry 5m aluminium boarding boat. Steel hull with aluminium superstructure.
Modernizations
None.
Naval service
No significant events.
