SANTA CLARA coastal patrol boats (1954/1992)
Nombre de Dios 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L15 Santa Clara (ex-MSB25) L16 Nombre de Dios (ex-MSB28) L17 Bastimentos (ex-MSB41) |
Trumpy Yachts, Annapolis, USA: L15, 16 Simms Bros, Dorchester, USA: L17 |
1954 // 1992: L15-17 |
none |
none |
1996: L15 2003: L17 2014: L16 |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 30 |
|---|---|
| Displacement full, t | 44 |
| Length, m | 17.5 |
| Breadth, m | 4.83 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 6-71 diesels |
| Power, h. p. | 300 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar |
| Complement | 6 |
Graphics

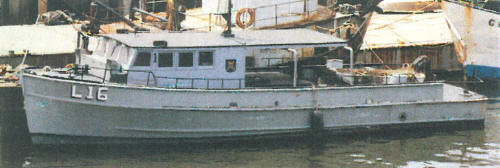

Nombre de Dios 2003
Project history
Former USN MSB5-class minesweeping boats.
Modernizations
None.
Naval service
No significant events.
