NAVYPEDIA
Support the project with paypal
HOME
FIGHTING SHIPS OF THE WORLD
PANAMA
COASTAL FORCES
COMANDANTE TORRIJOS patrol craft (1982)
Comandante Torrijos 1982
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC16 Comandante Torrijos, 1989- P201 Comandante Torrijos, late 1990s- P201 General Esteban Huertas GC17 Presidente Porras, 1989- P202 Presidente Porras |
Swiftships, Morgan City, USA: GC16, 17 |
1982: GC16, 17 |
P202 (sunk 1989) |
None |
2012: P201 |
Technical data
| Displacement standard, t | 31 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 17.9 wl 19.8 oa |
| Breadth, m | 5.64 |
| Draught, m | 1.83 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI N75 diesels |
| Power, h. p. | 1020 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil 6 |
| Endurance, nm(kts) | 500(8) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 110 radar |
| Complement | 8 |
Graphics

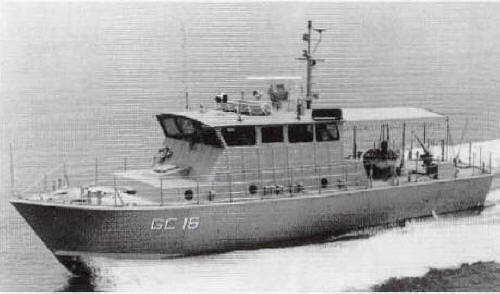

Comandante Torrijos 1982
Project history
Swiftships 65ft Commercial Cruiser type. Aluminium hull.
Modernizations
None.
Naval service
No significant events.
