STORD destroyers (1943-1944)





Stord

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Stord (ex-Success) G26, 1950- D300   White, Cowes, UK 2/1942 3.4.1943 9.1943 stricken 1959
Svenner (ex-Shark) G03   Scotts, Greenock, UK 11/1941 1.6.1943 3.1944 sunk 6.6.1944


Technical data


Displacement standard, t

1780

Displacement full, t

2530

Length, m

103.5 pp 110.6 oa

Breadth, m

10.9

Draught, m

4.32 - 4.37 deep load

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers

Power, h. p.

40000

Max speed, kts

36.75

Fuel, t

oil 588

Endurance, nm(kts)4675(20)
Armament

4 x 1 - 120/45 QF Mk IX, 1 x 2 - 40/56 Bofors Mk VIII/IX, 4 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 4 - 533 TT, 4 DCT, 2 DCR (70 DC)

Electronic equipment

type 271, type 285, type 291 radars, type 144 sonar

Complement

180 - 225



Standard scale images

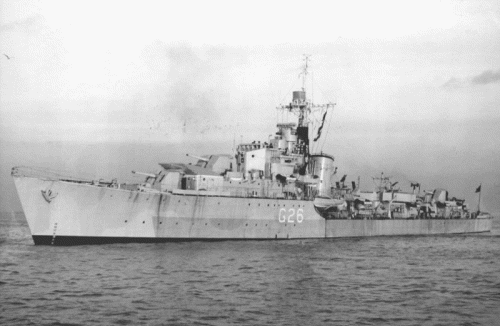

<i>Stord</i> 1944
Stord 1944
<i>Stord</i> 1944
Stord 1944


Graphics


<i>Stord</i>
Stord


Project history

British S class destroyers, transferred to the Norwegian Navy at completion and become operational already under the Norwegian flag.

Modernizations

1945, presumably Stord: - type 271 radar or type 272 radar, type 291 radar; + type 276 radar, type 293 radar

Naval service

Svenner was sunk 6.6.1944 at coast of Normandy by German torpedo boats T28, Möwe, Falke and Jaguar.
