OHUE minehunters (1987-1988)

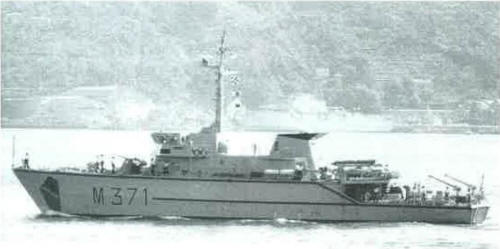

Ohue 1987

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ohue M371   Intermarine, Sarzana, Italy 23.7.1984 22.11.1985 28.5.1987 in service (2019)
Barama M372   Intermarine, Sarzana, Italy 11.3.1985 6.6.1986 25.2.1988 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Ohue M371   Intermarine, Sarzana, Italy 23.7.1984 22.11.1985 28.5.1987 in service (2019) Barama M372   Intermarine, Sarzana, Italy 11.3.1985 6.6.1986 25.2.1988 in service (2019)

Technical data


Displacement standard, t470
Displacement full, t540
Length, m

46.5 pp 51.0 oa
Breadth, m9.56
Draught, m2.80
No of shafts

2 waterjets
Machinery

2 MTU 12V396 TB83 diesels
Power, h. p.

2880
Max speed, kts

15.5
Fuel, t

diesel oil
Endurance, nm(kts)2500(12)
Armament

1 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 20/90 GAM-B01, 2x Pluto USV, MS103D mechanical, AS203 acoustic, MG304 magnetic minesweeping gear, 2x decompression chambers
Electronic equipment

Decca 1226 radar, TSM 2022 sonar
Complement

50


Standard scale images


<i>Ohue </i>2000
Ohue 2000


Graphics


<i>Ohue </i>1987
Ohue 1987


Project history

Version of Italian Lerici class but with different propulsion and minesweeping equipment.

Modernizations

None.

Naval service

No significant events.
