Aresa 1800 patrol boats (2013)
2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
2 units |
Aresa Internacional, Barcelona, Spain: 2 units |
2013: 2 units |
none |
none | in service (2019): 2 units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 30 |
| Length, m | 17.3 |
| Breadth, m | 4.50 |
| Draught, m | 0.60 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar, FLIR e/o system |
| Complement | 12 |

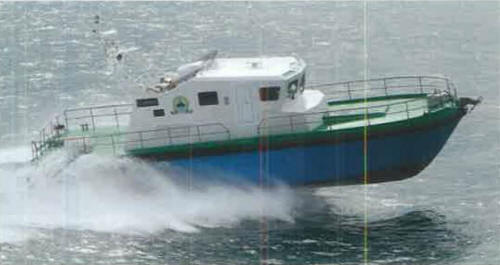

Graphics
2013
Project history
Aresa 1800 'CPV Fighter' design, GRP construction. Built for NIMASA (NIgerian MAritime Security Agency).
Modernizations
None.
Naval service
No significant events.
