Aresa 1300 patrol launches (2013)
2013
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
4 units |
Aresa Internacional, Barcelona, Spain: 4 units |
2013: 4 units |
none |
none | in service (2019): 4 units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 13.1 |
| Breadth, m | 3.33 |
| Draught, m | 0.70 |
| No of shafts | 4 outboard |
| Machinery | 4 Envirude outboard motors |
| Power, h. p. | 1200 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 10 |

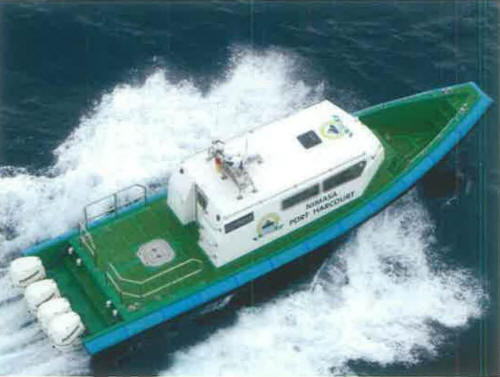

Graphics
2013
Project history
Aresa 1300 'Sentinel' design, GRP construction. Built for NIMASA (NIgerian MAritime Security Agency).
Modernizations
None.
Naval service
No significant events.
