SIKA 1 patrol boats (2008)
Sika 3 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Sika 1 - 4 |
CNB-Bénéteau, L'Herbaudière, Noirmoutier, France: Sika 1 - 4 |
2008: Sika 1 - 4 |
none |
none | in service (2019): Sika 1 - 4 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 40 |
| Length, m | 17.3 pp 20.0 oa |
| Breadth, m | 5.39 |
| Draught, m | 1.45 |
| No of shafts | 2 |
| Machinery | 2 MAN V12 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400 |
| Armament | small arms |
| Electronic equipment | Furuno radar |
| Complement | 8 |
Graphics

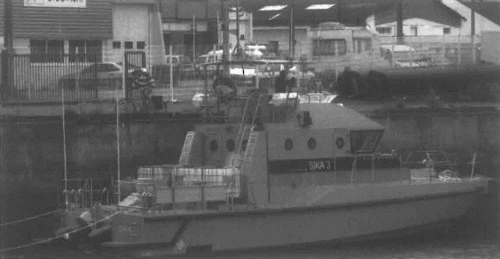

Sika 3 2008
Project history
VCSM-class, based on the Elorn class design. Intended for protection of offshore oil assets. Local security service.
Modernizations
None.
Naval service
No significant events.
