P25 patrol boats (2008-2014)
2009
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P25 P28 P31 P241-246 P248-254 P260-262 3 other units |
STM, Singapore: P25, 28, 31, 241-246, 248-254, 260-262, 3 other units |
2008: P25, 28, 31, 1 other unit 2011: P248-254 2013: P260-262 2014: P241-246 2009-13: 2 other units |
none |
none | in service (2019): P25, 28, 31, 241-246, 248-254, 260-262, 3 other units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 21 |
| Length, m | 16.5 pp 18.0 oa |
| Breadth, m | 3.60 |
| Draught, m | 0.95 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 45 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 250(35) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 6 |

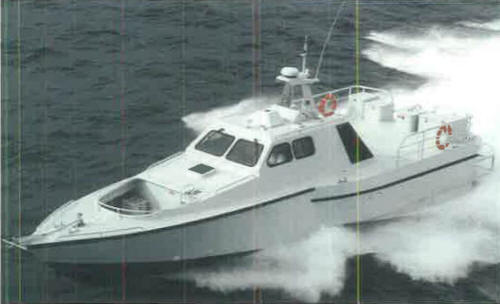

Graphics
2009
Project history
Suncraft Manta Mk IIASD (Manta III) class. Malaysian design. Intended to provide protection of offshore oil facilities.
Modernizations
None.
Naval service
No significant events.
