P233 patrol boats (1986-1987)
P236 2002
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P233-238 |
Simonneau, Fontenay-le-Comte, France: P233-238 |
1986-1987: P233-238 |
none |
none | mid-2010s: P233-238 |
Technical data
| Displacement standard, t | 22 |
|---|---|
| Displacement full, t | 25 |
| Length, m | 14.1 wl 15.8 oa |
| Breadth, m | 4.60 |
| Draught, m | 0.90 hull 1.80 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 6V396 TC82DE diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil 2 |
| Endurance, nm(kts) | 375(25) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Decca 976 radar |
| Complement | 6 |
Graphics

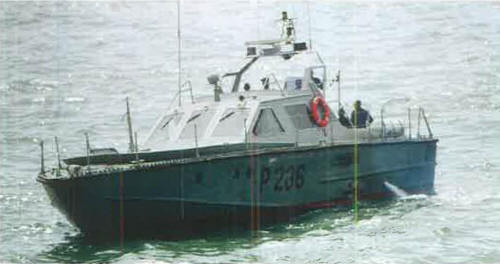

P236 2002
Project history
Simonneau SM-500 design. Coast Guard.
Modernizations
None.
Naval service
No significant events.
