P227 patrol launches (1986)
P230 1986
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P227-232 |
Damen, Gorinchem, Netherlands: P227-232 |
1986: P227-232 |
none |
none | mid-2010s: P227-232 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 16 |
| Length, m | 13.6 wl 15.1 oa |
| Breadth, m | 4.50 |
| Draught, m | 1.40 max |
| No of shafts | 2 |
| Machinery | 2 MTU 6V331 TC82 diesels |
| Power, h. p. | 2250 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil 1.6 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 6 |
Graphics

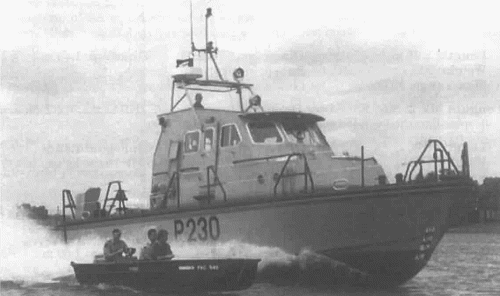

P230 1986
Project history
Stan Pat 1500 design. Coast Guard.
Modernizations
None.
Naval service
No significant events.
