ONITSHA patrol boats (2009-2013)

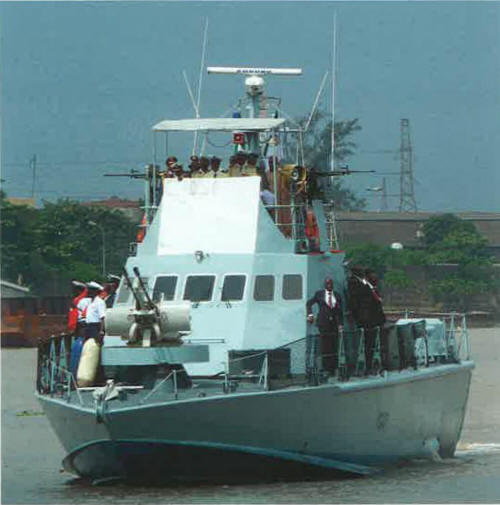

Onitsha 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P247 Onitsha P255 Ikot-Abasi P256 Benin P257 |
Israeli SYds, Be'er-Sheva, Israel: P247, 255-257 |
2009: P247, 255 2012: P256 2013: P257 |
none |
none | in service (2019): P247, 255-257 |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 20.0 pp 24.8 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.21 |
| No of shafts | 2 waterjets |
| Machinery | 2 Deutz-MWM TBD604BV16 diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(32) |
| Armament | 2 x 2 - 12.7/90, 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 15 |
Graphics
Onitsha 2010
Project history
Shaldag Mk II class. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
