ARGUNDU patrol boats (1974-1976)
Yola 1974
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P165 Argundu P166 Yola P169 Brass P170 Epe |
Abeking & Rasmussen, Lemwerder, West Germany: P165, 166, 169, 170 |
1974: P165, 166 1976: P169, 170 2005: P166 (2nd time) 2008: P169 (2nd time) |
none |
none |
1990s: P165, P166 (1st time), P169 (first time), P170 in service (2019): P166, 169 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 29.0 pp 32.0 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2070 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 9, 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca 1229 radar |
| Complement | 25 |
Graphics

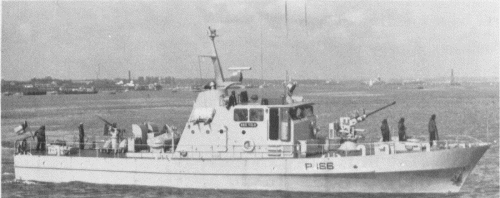

Yola 1974
Project history
German design.
Modernizations
1978, all: - 1 x 1 - 40/60, 1 x 1 - 20/70; + 2 x 2 - 30/75 Emerlec EX-30
Naval service
No significant events.
