K II

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
K II			Fijenoord, Schiedam	11.1915	27.2.1919	3.1922	stricken 8.1937

Technical data

Displacement standard, t	507
Displacement normal, t	569 / 649
Length, m	54.0 pp 57.3 oa
Breadth, m	5.29
Draught, m	3.82
No of shafts	2
Machinery	2 MAN 8-cyl diesels / 2 electric motors
Power, h. p.	1800 / 500
Max speed, kts	15.5 / 8.5
Fuel, t	diesel oil
Endurance, nm(kts)	3500(11) / 25.5(8.5)
Armament	1 x 1 - 75/52 SA No.2, 6 - 450 TT (2 bow, 2 stern, 1 x 2, 12)
Complement	29
Diving depth operational, m	40

Standard scale images

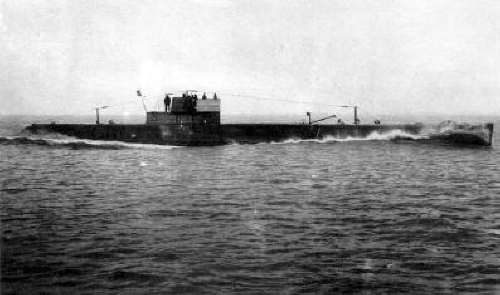

Graphics

Project history

Hay-Denny type, very similar to later K V class. MAN could not complete work on the engines owing to war, and engines were completed by De Schelde.

Modernizations

late 1920s: + 1 x 1 - 12.7/90

Naval service

No significant events.
