PRO PATRIA minelayer (1923)

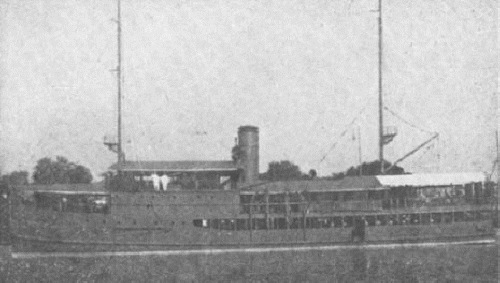

Pro Patria 1929
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Pro Patria | Marine Etablissement Soerabaja, Surabaya | 1920 | 17.7.1922 | 8.1923 | scuttled 15.2.1942 |
Technical data
| Displacement standard, t | 537 |
|---|---|
| Displacement full, t | 612 |
| Length, m | 47.0 pp |
| Breadth, m | 8.60 |
| Draught, m | 2.30 |
| No of shafts | 1 |
| Machinery | 1 VTE, 2 boilers |
| Power, h. p. | 650 |
| Max speed, kts | 10 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 75/37 Krupp Nr.1, 2 x 1 - 12.7/90, 60 mines |
| Complement | 61 |
Standard scale images
Pro Patria 1929
Graphics
Pro Patria 1929
Project history
One of the first ships buiilt on Surabaya DYd, however in the absence of experience, she has appeared unsuccessful and not completely met requirements shown to her.
Modernizations
None.
Naval service
In 1937-1940 Pro Patria was used as TS and torpedo repair ship. 15.2.1942 she was scuttled by crew in a mouth of river Musi (near Palembang).
