NAUTILUS minelayer (1930)

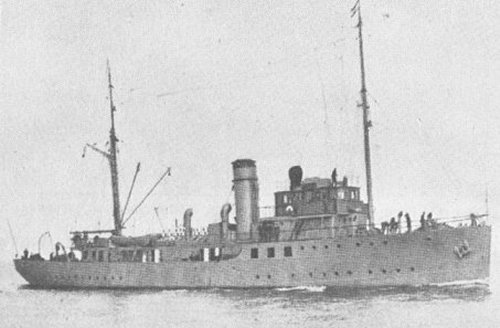

Nautilus Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Nautilus M12 158 Rotterdam Droogdok Mij 1.1929 20.10.1929 5.1930 collision 22.5.1941


Technical data


Displacement standard, t

800

Displacement full, t

951

Length, m

55.0 pp 58.7 oa

Breadth, m

9.53

Draught, m

3.50 normal 4.20 max

No of shafts

2

Machinery

2 VTE, 3 boilers

Power, h. p.

1350

Max speed, kts

15

Fuel, t

oil 138

Endurance, nm(kts)
Armament

2 x 1 - 75/52 SA Nr.2, 1 x 1 - 37/45 Hotchkiss, 2 x 1 - 12.7/90, 60 mines

Complement

57



Standard scale images


<i>Nautilus </i>1940
Nautilus 1940


Graphics


<i>Nautilus</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Nautilus Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Rather successful ship of double assignment: minelayer and escort; in a peace time she was used as a fishery protection vessel. Nautilus has served as a prototype for a number of subsequent projects. She differed by good seaworthiness, however had no covered mine deck. In a role of escort she was appeared ineffective because of weakness of antiaircraft armament.

Modernizations

1940: + 2 x 1 - 40/39 QF Mk VIII

Naval service

Nautilus was sunk 22.5.1941 as result of collision with British s/s Murrayfield at E coasts of England.



Many thanks to Wolfgang Stöhr for additional information on this page.
