L9565 landing craft (2008-2011)

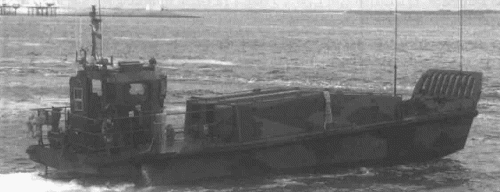

L9574 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L9565 - 9576 |
Visser, Den Helder: L9565-9576 |
2008-2011: L9565-9576 |
None |
None |
in service (2019): L9565-9576 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 24 |
| Length, m | 15.7 |
| Breadth, m | 4.20 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 Volvo-Penta D9-575 diesels |
| Power, h. p. | 1150 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Military load | 35 troops or 2 Land Rovers or 8.2t cargo |
| Electronic equipment | Raymarine radar |
| Complement | 3 |
Graphics
L9574 2011
Project history
LCA Mk 5, ordered to replace the LCA Mk 3 class. Able to transport 8.2 tons including two Land Rover vehicles or one BV-206 armored personnel carrier. The cargo deck is covered with GRP segments that slide aft for stowage.
Modernizations
None.
Naval service
No significant events.
