NAVYPEDIA

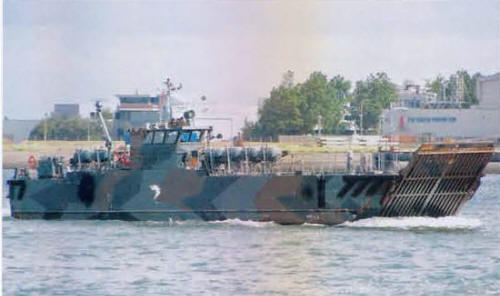

L9528 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
	L9525		Visser, Den Helder	28.4.1997	9.8.1997	7.4.1998	in service (2019)
	L9526		Visser, Den Helder	28.9.1998	25.6.1999	31.7.1999	in service (2019)
	L9527		Visser, Den Helder	28.9.1998	30.8.1999	24.9.1999	in service (2019)
	L9528		Visser, Den Helder		22.10.1999	17.12.1999	in service (2019)
	L9529		Visser, Den Helder		12.11.1999	20.12.1999	in service (2019)

Technical data

Displacement standard, t
Displacement full, t	200
Length, m	23.8 wl 27.3 oa
Breadth, m	6.84
Draught, m	1.55
No of shafts	2 Schottel vertical-cycloidal propellers
Machinery	2 Caterpillar 3412C D1-T diesel-generators, 2 Alconza D.400.M6 electric motors
Power, h. p.	1500
Max speed, kts	9
Fuel, t	diesel oil
Endurance, nm(kts)	400(8)
Armament	1 x 1 - 12.7/90, 1 x 1 - 7.6/90
Military load	60t cargo or 130 troops or 3 4t trucks or 2 10t trucks or 4 BV206 personnel carriers or 2 Warrior AIFVs
Electronic equipment	Furuno radar
Complement	5

Graphics

Project history

Four were ordered in 1997 for use with Rotterdam (L 800), with an option for the fifth later taken up. Originally were to have had hulls built in Romania, but the hulls were instead built at Eoermond and fitted out at Den Helder. Visser is a subsidiary of the Damen group. Assigned directly to the Royal Netherlands Marine Corps. Unusually deep 4.4m molded depth to hull, which has vehicle ramps fore and aft. Can also carry one beach armored recovery vehicle (BARV). Ballast tanks aft are used to alter the hull trim for beaching. The propellers are mounted fore and aft. Electric power is taken from one of the main generators, and there is also a Perkins diesel-powered emergency set. The articulating radar mast is raised or lowered pneumatically.

Modernizations

2004, L9526; 2005, L9527; 2006, L9525, L9528; 2007, L9529: were lengthened (36.1m, 200/260t)

Naval service

No significant events.
