JACOB VAN HEEMSKERCK frigates (1986)





Witte de With 1986

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Jacob van Heemskerck (ex-Pieter Florisz) F812 362 KM De Schelde, Vlissingen 21.1.1981 5.11.1983 15.1.1986 to Chile 12.2005 (Almirante Latorre)
Witte de With F813 363 KM De Schelde, Vlissingen 15.12.1981 25.8.1984 17.9.1986 to Chile 7.2006 (Capitán Prat)


Technical data


Displacement standard, t

3000
Displacement full, t

3750
Length, m

121.8 pp 130.2 oa
Breadth, m

14.4
Draught, m

4.23 hull 6.00 propellers
No of shafts

2
Machinery

COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines
Power, h. p.

51600 / 9800
Max speed, kts

30
Fuel, t

gas turbine oil
Endurance, nm(kts)

4700(16)
Armament

2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 Standard SM-1MR SAM (40 RIM-66), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 7 - 30/77 Goalkeeper, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5)
Electronic equipment

Decca 1226, ZW-06, DA-08, LW-08, STIR-18, 2x STIR-24, Goalkeeper radars, SQS-509 (PHS-36) sonar, Sphinx, Ramses ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO II CCS
Complement

197 + 20 flag staff


Standard scale images

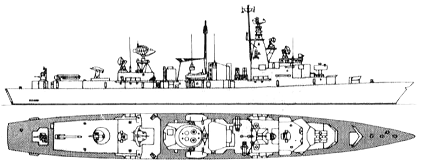

<i>Jacob van Heemskerck </i>2000
Jacob van Heemskerck 2000


Graphics

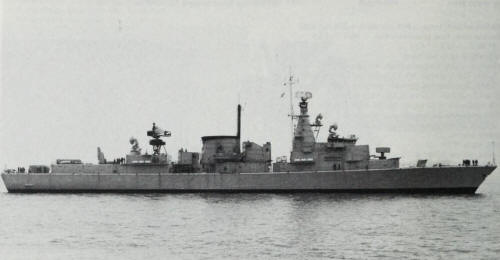

<i>Witte de With </i>1986
Witte de With 1986

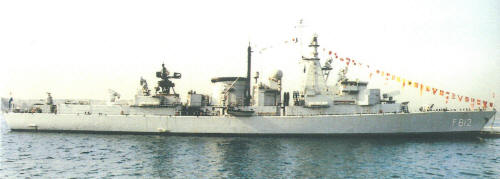

<i>Jacob van Heemskerck </i>2003 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Jacob van Heemskerck 2003 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

The air defence variant of the 'Standard' frigate has much in common with its ASW counterparts. Not only does it share a common hull-form and propulsion system with the latter, but it featured a number of common weapons and electronics systems. The major external differences were the after deckhouse for the US Standard missile system which replaced the helicopter hangar, the suppression of the 76mm gun mounting forward, and the heightened foremast with its DA-08 target tracking radar. The fire control radar for the US Standard SAM was not the standard US SPG-51, but a modified STIR radar of Netherlands design and manufacture.

The arrangements for reloading the eight-cell box launcher for the NATO Sea Sparrow SAM have been considerably modified. Reloads were carried in a tall magazine structure protecting from the forward end of the bridge and were run up manually on an angled ramp connecting the magazine doors with the after end of the launcher.

Modernizations

1995-1996, both: - Decca 1226, DA-08 radars; + 2 x 1 - 20/70 Mk 10, SMART-S, Scout radars

Naval service

No significant events.
