G1 JOHAN VAN BRAKEL torpedo boats (1905)





G2 Jan Danielzoon van der Rijn Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
G1 Johan Van Brakel   109 De Schelde, Vlissingen 1903 17.12.1904 1905 stricken 1919
G2 Jan Danielzoon van der Rijn   110 De Schelde, Vlissingen 1903 17.12.1904 1905 stricken 1919
G3 Meijndert Jentjes   192 Fijenoord, Schiedam 1903 1904 1905 stricken 1919
G4 Willem Willemsze   193 Fijenoord, Schiedam 1903 1904 1905 stricken 1919


Technical data


Displacement normal, t

142

Displacement full, t145
Length, m

46.6

Breadth, m4.70
Draught, m

2.30

No of shafts

1

Machinery

1 VTE, 2 Yarrow boilers

Power, h. p.

2000

Max speed, kts

25

Fuel, t

coal 34

Endurance, nm(kts)

2200(10)

Armament

2 x 1 - 50/37 Krupp No.1, 1 - 450 TT (bow), 2 x 1 - 450 TT

Complement25


Standard scale images


<i>G1 Johan Van Brakel </i>1914
G1 Johan Van Brakel 1914


Graphics

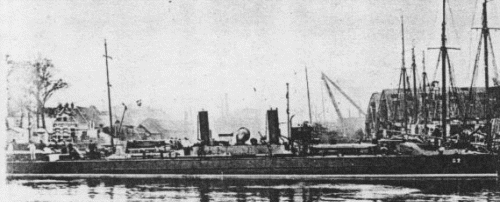

<i>G2 Jan Danielzoon van der Rijn</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
G2 Jan Danielzoon van der Rijn Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Enlarged Hydra with strengthened armament and larger endurance.

Modernizations

None.

Naval service

No significant events.@import url(http://www.google.com/cse/api/branding.css);

Many thanks to Wolfgang Stöhr for additional information on this page.
