DRAAK torpedo boats (1907)

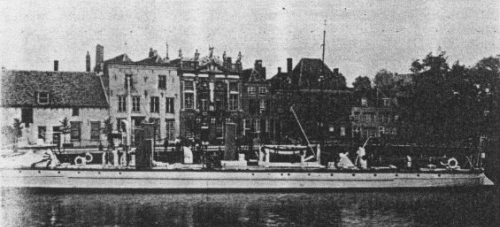

Krokodil 1907 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Draak | 120 | De Schelde, Vlissingen | 1905 | 21.7.1906 | 1907 | subsidiary service 1921 | |
| Krokodil | 121 | De Schelde, Vlissingen | 1905 | 2.8.1906 | 1907 | subsidiary service 1921 | |
| Zeeslang | 126 | De Schelde, Vlissingen | 1906 | 27.4.1907 | 1907 | subsidiary service 1921 |
Technical data
| Displacement normal, t | 90 |
|---|---|
| Displacement full, t | 103 |
| Length, m | 39.6 |
| Breadth, m | 4.11 |
| Draught, m | 2.20 |
| No of shafts | 1 |
| Machinery | 1 VTE, 2 Yarrow boilers |
| Power, h. p. | 1500 |
| Max speed, kts | 24 |
| Fuel, t | coal 21 |
| Endurance, nm(kts) | 1500(10) |
| Armament | 2 x 1 - 37/20 Hotchkiss, 1 - 450 TT (bow), 1 x 1 - 450 TT |
| Complement | 21 |
Standard scale images
similar Hydra 1905
Graphics
Krokodil 1907 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
They were similar to the Hydra class boats but with one fewer tube, and, like that class, belonged to the East Indies Marine (Indische Militaire Marine).
Modernizations
None.
Naval service
No significant events.@import url(http://www.google.com/cse/api/branding.css);
