KONINGIN WILHELMINA DER NEDERLANDEN protected cruiser (1894)

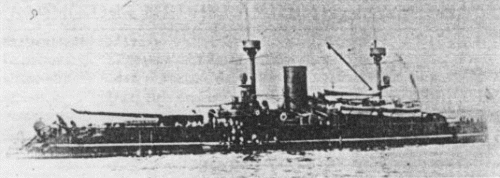

Koningin Wilhelmina der Nederlanden 1894

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Koningin Wilhelmina der Nederlanden     Rijkswerf Amsterdam 1891 22.10.1892 17.4.1894 stricken 3.1910


Technical data


Displacement normal, t

4530

Displacement full, t
Length, m

99.8

Breadth, m

14.9

Draught, m

6.07 max

No of shafts

2

Machinery

4 VTE, 6 cylindrical boilers

Power, h. p.

4600

Max speed, kts

15.8

Fuel, t

coal 411

Endurance, nm(kts)

1800(10)

Armour, mm

compound; deck: 50 with 75mm slopes, barbette: 280, turret: 280

Armament

1 x 1 - 283/27 Krupp No.2, 1 x 1 - 209/32 Krupp No.2, 2 x 1 - 173/32 Krupp No.2, 4 x 1 - 75/37 Krupp No.1, 6 x 1 - 37/20 Hotchkiss, 4 x 5 - 37/17 Hotchkiss, 4 - 356 TT (1 bow, 2 beam, 1 stern)

Complement

296



Standard scale images

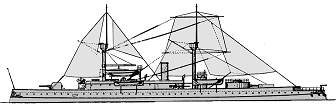

<i>Koningin Wilhelmina der Nederlanden </i>1894
Koningin Wilhelmina der Nederlanden 1894


Graphics


<i>Koningin Wilhelmina der Nederlanden </i>1894
Koningin Wilhelmina der Nederlanden 1894

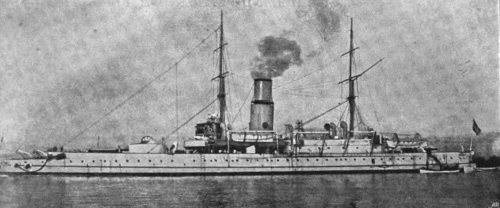

<i>Koningin Wilhelmina der Nederlanden </i>1900
Koningin Wilhelmina der Nederlanden 1900


Project history

A ship of unusual design with the 28cm turret forward, the 21cm gun in a shield aft and the 17cm also in shields on either beam.

Ship protection

Ship was protected by 50mm deck with 75mm slopes, the engine room had 125mm glacis and the boiler room 280mm glacis.

Modernizations

None.

Naval service

No significant events.
