MARTEN HARPERTZOON TROMP coast defence ship (1905)

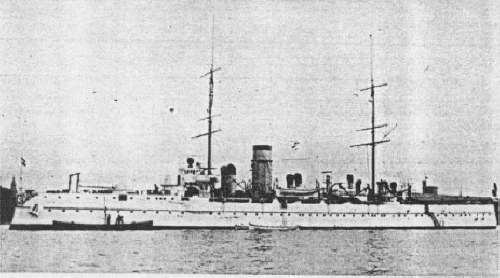

Marten Harpertzoon Tromp 1906 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Marten Harpertzoon Tromp     Rijkswerf Amsterdam 2.5.1903 15.6.1904 17.11.1905 stricken 1932


Technical data


Displacement normal, t

5210

Displacement full, t

5295

Length, m

100.8 oa

Breadth, m

15.2

Draught, m

5.69 max

No of shafts

2

Machinery

2 VTE, 8 Yarrow boilers

Power, h. p.

6400

Max speed, kts

16.5

Fuel, t

coal 722

Endurance, nm(kts)

4000(10)

Armour, mm

belt: 150 - 100, bulkheads: 150, deck: 50, main turrets: 100, barbettes: 200 - 100, CT: 195

Armament

2 x 1 - 238/37 Krupp No.2, 4 x 1 - 149/37 Krupp No.5, 8 x 1 - 75/37 Krupp No.1, 4 x 1 - 37/20 Hotchkiss, 3 - 450 TT (1 aft, 2 beam)

Complement

340



Standard scale images

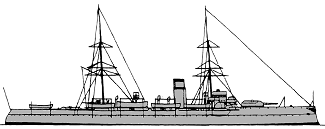

<i>Marten Harpertzoon Tromp</i> 1904
Marten Harpertzoon Tromp 1904


Graphics


<i>Marten Harpertzoon Tromp</i> 1906 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Marten Harpertzoon Tromp 1906 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Development of Koningin Regentes class with 150mm guns placed in single turrets.

Ship protection

Armoured belt protected full ship length, 150mm-thick part between main turrets was closed by 150mm bulkheads. Main 50mm deck was connected with upper edge of the belt.

Modernizations

None.

Naval service

In May, 1927 ship was laid up to reserve, stricken in 1932 and broken up next year.

Many thanks to Wolfgang Stöhr for additional information on this page.
