TOBIAS HAINYEKO patrol ship (1979/1993)

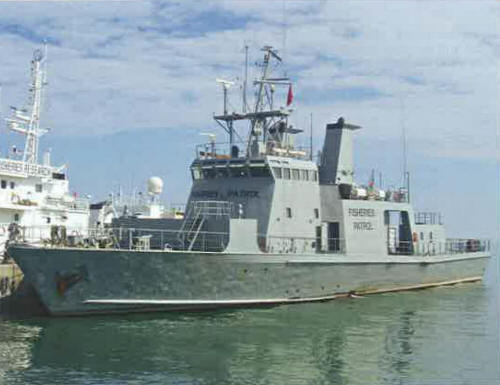

Tobias Hainyeko 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Tobias Hainyeko (ex-Havørnen) | Frederikshavn Værft, Denmark | 7.1979 // 5.1993 | in service (2020) |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | 506 |
| Length, m | 45.8 pp 50.0 oa |
| Breadth, m | 10.5 |
| Draught, m | 2.75 |
| No of shafts | 2 |
| Machinery | 2 B&W Alpha 16V23L-VO diesels |
| Power, h. p. | 4640 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(15) |
| Armament | helicopter deck |
| Electronic equipment | Furuno FR1525, Furuno FR805D radars |
| Complement | 15 |
Graphics
Tobias Hainyeko 2008
Project history
Former Danish fisheries protection vessel.
Modernizations
None.
Naval service
No significant events.
