T201 fast attack craft (1956-1957)

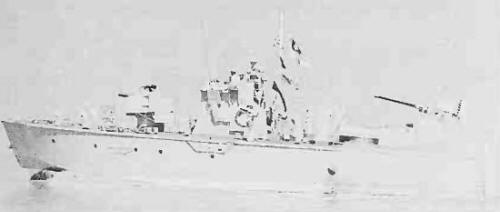

T202 1962
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
T201-205 (ex-PTS101-105) |
Saunders-Roe, Beaumaris, UK: T201-205 |
1956-1957: T201-205 |
none |
none |
1975: T201-205 |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 64 |
| Length, m | 20.4 pp 21.8 oa |
| Breadth, m | 5.90 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Napier Deltic diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil 8 |
| Endurance, nm(kts) |
|
| Armament | as gunboats: 1 x 1 - 114/19 Mk 1, 1 x 1 - 40/60 Mk 7 as torpedo boats: 1 x 1 - 40/60 Mk 7, 4 - 533 TT or 6 mines |
| Electronic equipment | radar |
| Complement | 15 |
Standard scale images
T201 1965
Graphics
T202 1962
Project history
Interchangeable MTBs/MGBs. Of aluminium construction, with riveted skin and aluminium alloy framework. The Saunders Roe slow-speed electric drive was fitted to facilitate manoeuvring in the confined inland waters where the craft were required to operate.
Modernizations
None.
Naval service
No significant events.
